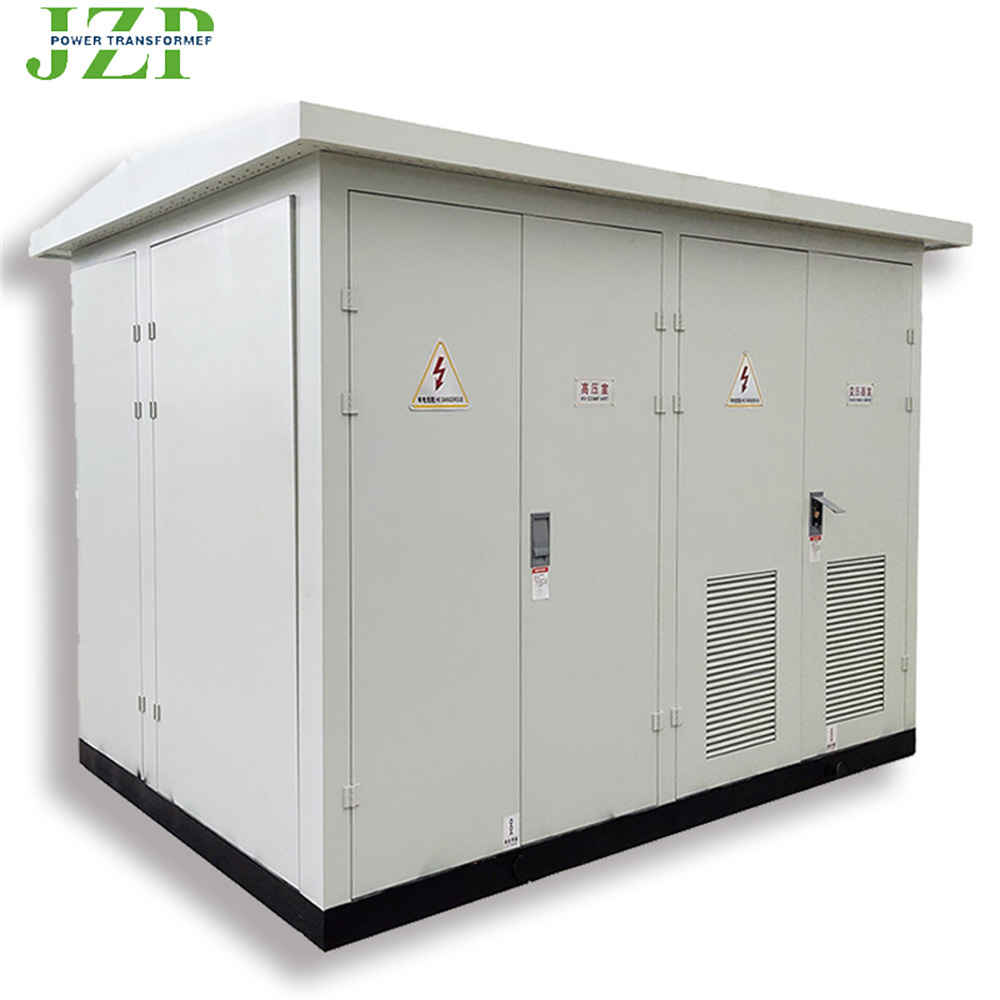

Scalable Compact Substations for Industrial Use
Core Features & Benefits
Space-Efficient Design
Modular architecture reduces physical size by up to 60% compared to traditional substations, making installation feasible in constrained spaces like urban corridors, industrial plants, or remote communities. Pre-assembled units minimize on-site construction time.
High Performance & Reliability
Equipped with oil-immersed or dry-type transformers, vacuum circuit breakers, and SF6 gas-insulated switchgear (GIS), these substations ensure efficient power regulation (11kV to 33kV) and protection against faults. Robust insulation and cooling systems enhance durability in harsh climates.

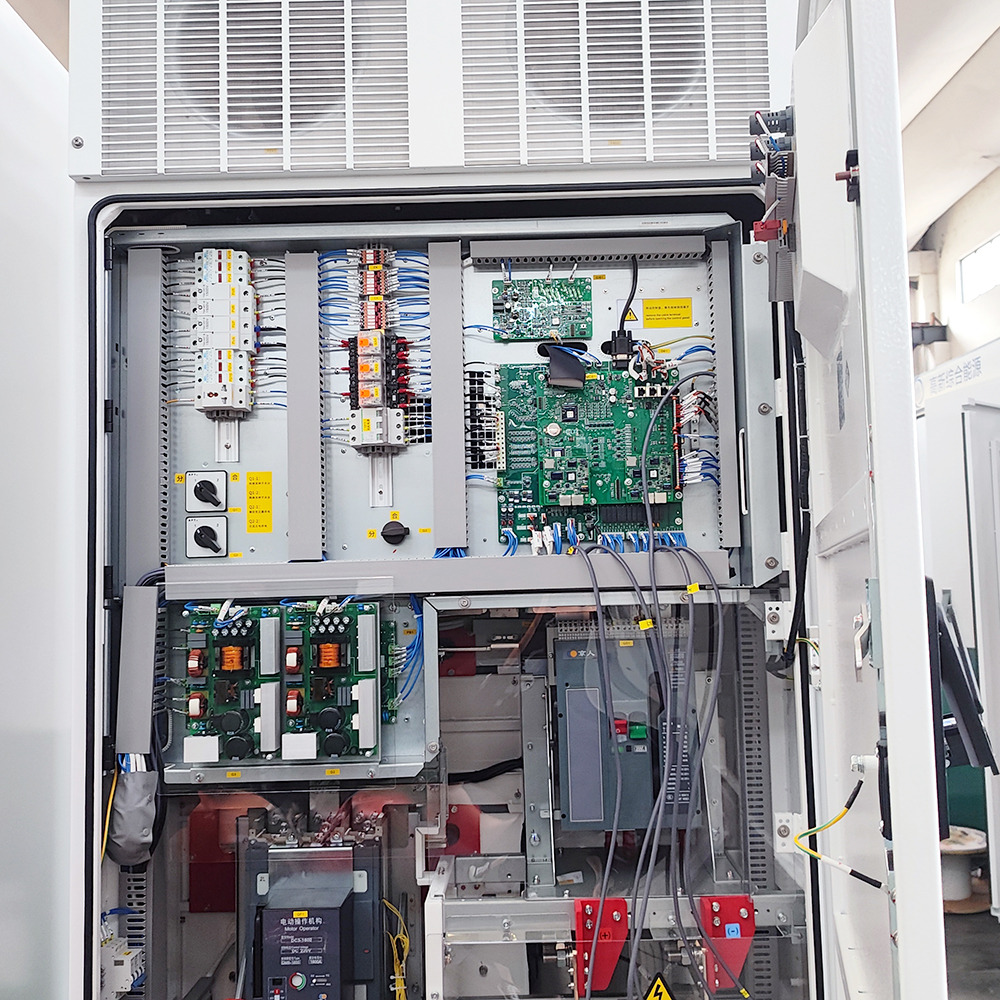

Smart Automation & Monitoring
Optional IoT-enabled systems provide real-time data on voltage, current, temperature, and fault detection. Remote control capabilities via SCADA integrate with smart grid networks, enabling predictive maintenance and reducing downtime.
Quick Deployment & Scalability
Factory-assembled and tested units can be installed in days, accelerating project timelines. Scalable designs allow capacity upgrades (up to 50 MVA) without replacing the entire system, supporting long-term energy growth.
Eco-Friendly & Cost-Effective
Low noise operation (<65 dB) and recyclable materials comply with environmental regulations. Energy-efficient designs reduce power losses by up to 25%, lowering operational costs.
Applications
Urban Infrastructure: Substations for downtown areas, commercial hubs, and smart cities.
Industrial Zones: Stable power supply for manufacturing plants, mines, and data centers.
Remote Areas: Rapid deployment in off-grid or disaster-prone regions.
Renewable Energy: Integration with solar/wind farms for efficient grid connection.
Technical Specifications
Voltage Range: 11kV to 33kV (medium voltage).
Capacity: 5 MVA to 50 MVA.
Frequency: 50Hz/60Hz.
Cooling: Air natural (AN) or forced (AF) cooling.
Compliance: IEC 62271, IEEE 1526, and ISO 9001/14001 certified.
Quality Assurance
Rigorous testing includes dielectric strength, short-circuit withstand, and temperature rise simulations.
Certified by KEMA, DEKRA, and TÜV for safety and reliability.
Why Choose Us?
25+ Years of Expertise: Proven designs for extreme temperatures, humidity, and seismic zones.
End-to-End Services: Design, installation, and lifecycle maintenance support.
Flexible Financing: Leasing and pay-as-you-go options for budget flexibility.
Custom Solutions
Environmental Adaptations: Corrosion-resistant enclosures for coastal regions or explosion-proof designs for oil/gas sites.
Hybrid Systems: Integration of renewable energy storage (e.g., battery banks) for hybrid grids.
Product advantages
1. Core Materials and Winding Design
Core Materials
Amorphous Alloy Cores:
Ultra-low iron loss (70–80% lower than silicon steel) reduces energy waste, critical for compact, high-efficiency designs.
High permeability and near-zero magnetostriction minimize noise, ideal for urban or residential areas.
Cold-Rolled Grain-Oriented (CRGO) Silicon Steel:
Laser-cut laminations reduce eddy current losses, achieving efficiency levels up to 98.5% in limited spaces.
High magnetic flux density supports compact high-voltage (11kV–33kV) applications.
Winding Design
Foil Windings with Oil-Flow Cooling:
Copper/aluminum foil windings reduce leakage flux and short-circuit forces. Integrated oil channels enhance heat dissipation in confined layouts.
Interleaved layers minimize inter-turn voltage stress, improving short-circuit resilience (up to 50 kA asymmetrical faults).
Layered Litz Wire Windings:
Multi-strand Litz wire mitigates skin and proximity effects, reducing AC resistance for high-frequency operation (e.g., HVDC links).
Compact Disc/Winding Arrangements:
Helical or disc windings optimize space utilization, paired with graded insulation to withstand lightning impulses (≥1.2/50 μs).
2. Insulation Systems
Oil-Paper Composite Insulation:
Cellulose paper impregnated with ester fluids provides dielectric strength up to 300 kV BIL, ideal for compact high-voltage compartments.
Resistant to thermal cycling (−40°C to +140°C) and partial discharge.
Epoxy Resin Casting (Dry-Type):
Vacuum-pressure impregnation (VPI) with Class H epoxy resins ensures fire resistance (IEC 60335) and moisture tolerance in sealed environments.
Nano-Enhanced Insulation:
Silica-filled epoxy composites improve partial discharge resistance by 40%, extending lifespan in humid or polluted urban areas.
3. Thermal Management
Oil-Natural Air-Cooling (ONAN):
Passive cooling via radiators and natural convection for continuous operation in compact footprints (e.g., 100kVA–500kVA units).
Forced Air Cooling (OFAF):
Temperature-controlled fans enhance heat dissipation, enabling 120% overload capacity for emergency scenarios.
Smart Thermal Monitoring:
Fiber-optic sensors track hotspots, triggering alarms or cooling adjustments to prevent insulation degradation.
4. Structural Design and Protection
Modular and Space-Optimized Layout

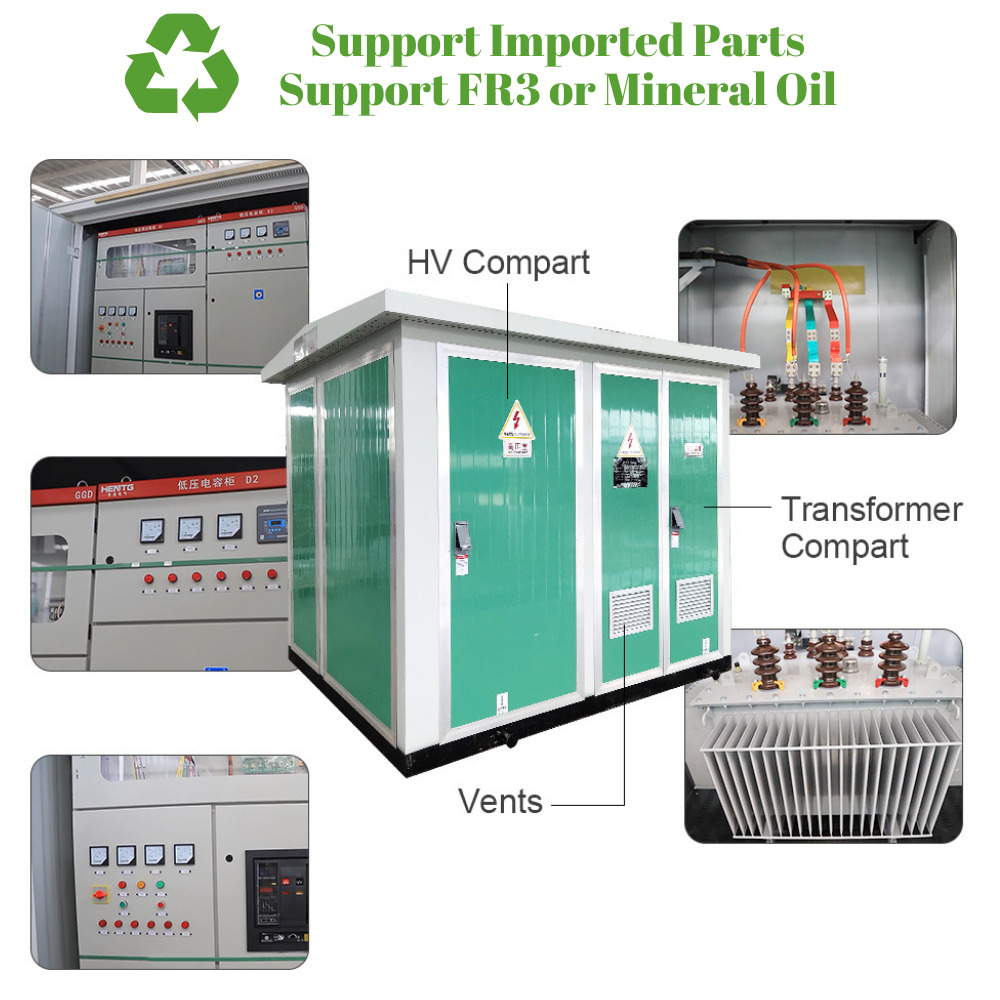

Integrated Enclosures:
Pre-fabricated, modular enclosures house transformers, switchgear, and protection systems in a single footprint, reducing installation time by 50%.
IP66/IP67 Ratings:
Hermetic sealing with EPDM gaskets and stainless-steel hardware protects against water, dust, and rodent intrusion.
Anti-Corrosion Treatment:
Hot-dip galvanized steel or aluminum enclosures with polyurethane coatings resist UV degradation and coastal salt exposure.
Safety Features
Pressure Relief Valves:
Automatically vent gases during internal faults, preventing explosive failures.
Conservator Tank Systems:
Sealed conservators minimize oxygen contact, reducing oil oxidation and sludge formation.
Surge Protection:
Integrated zinc oxide arresters (MOA) suppress lightning-induced transients (≥2.5 kA impulses).
5. Advanced Functionalities
Condition Monitoring Systems (CMS):
Embedded sensors track oil temperature, dissolved gas analysis (DGA), load levels, and partial discharge, enabling predictive maintenance via SCADA.
Smart Grid Integration:
IoT-enabled communication supports remote control, load balancing, and self-healing grid responses.
Eco-Friendly Innovations:
Bio-based insulating oils (e.g., ester fluids) with high biodegradability (OECD 301B compliant) and lower flammability.
Key Applications and Future Trends
Urban Distribution:
High-density units (500kVA–1 MVA) power city substations, renewable microgrids, and EV charging stations.
Renewable Energy Integration:
Compact designs for wind/solar farms and hybrid AC/DC microgrids.
Future Advancements:
Solid-State Transformers (SSTs): Enable DC-DC conversion and grid flexibility for decentralized systems.
Self-Healing Insulation: Nanocomposite materials autonomously repair minor dielectric defects.
Summary
Compact Substations excel through low-loss amorphous cores, space-saving modular designs, and multi-layered safety systems. Their blend of efficiency, scalability, and resilience makes them indispensable for modern urban and industrial grids, while innovations like solid-state technology and smart monitoring drive grid intelligence and sustainability.
