Single Phase Pole Mounted Transformer—25 kVA
Product Description
JZP excels in manufacturing ANSI/IEEE/UL transformers, demonstrating remarkable professionalism and proficiency in the North and South American markets. They offer 25 kVA single-phase pole-mounted transformers, which can be designed, produced, and customized to meet various international standards. JZP's commitment to excellence makes them a reliable partner for all transformer requirements in the Americas and beyond.

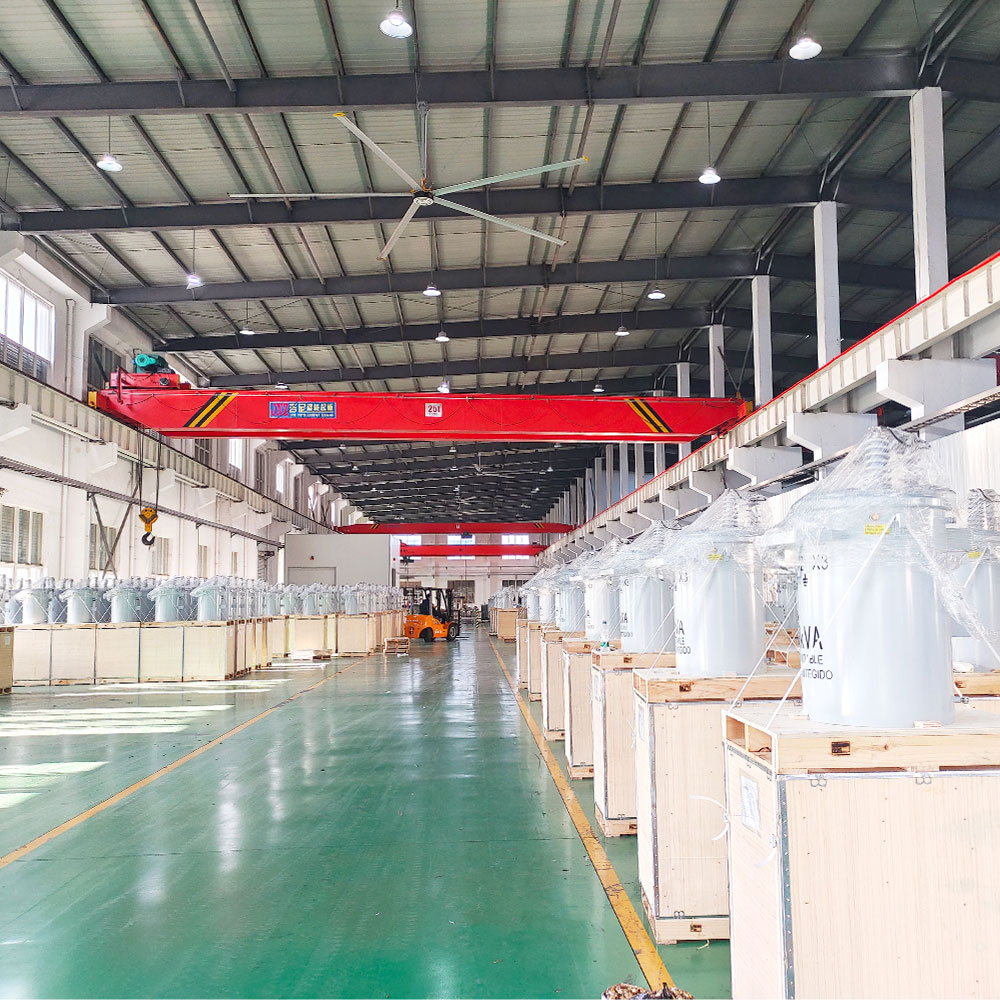

25kVA 19.92kV Single Phase Transformer
The DL-25/19.92/0.24(0.12), is a bespoke single-phase pole-mounted transformer
The 25 kVA single-phase pole-mounted transformer employs high-quality aluminum winding material for both its high and low-voltage sections, ensuring superior performance and reliability. With an impedance value of 2%, it features a Vector group of Ii0 and polarity that is Subtractive, enhancing its efficiency.
The transformer's high voltage with five distinct levels of voltage regulation, provides outstanding versatility, while the voltage regulation range of 19.92kV±2×2.5% ensures steadfast stability even during fluctuations.

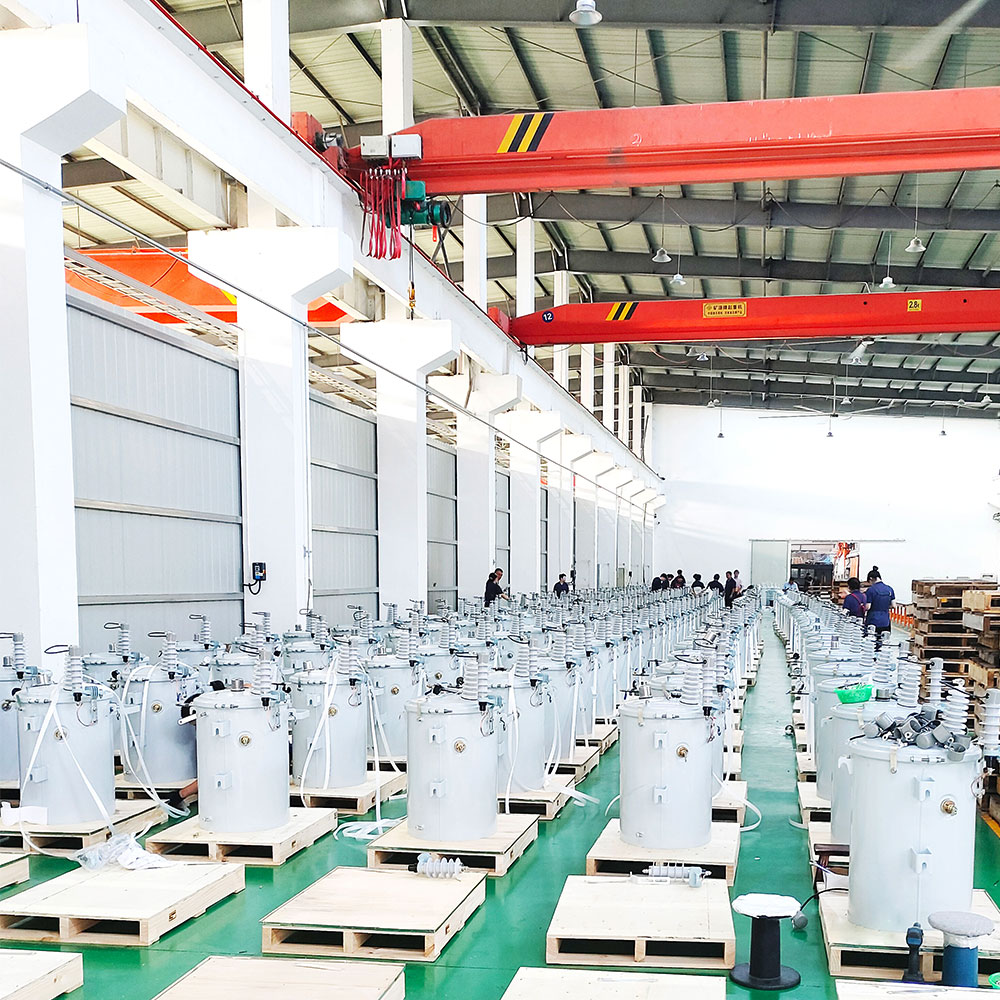

25kVA 7.2(12.47)kV/4.8(8.32)kV Single Phase Transformer
The 25 kVA single phase pole mounted transformer boasts a dual high voltage design. This enables seamless selection of high voltage from 7.2kV or 4.8 kV, catering precisely to varying load equipment requirements, offering unparalleled versatility.
The transformer incorporates an efficient ONAN cooling system, complemented by PCB-free mineral oil 45#, ensuring safety and environmental responsibility.

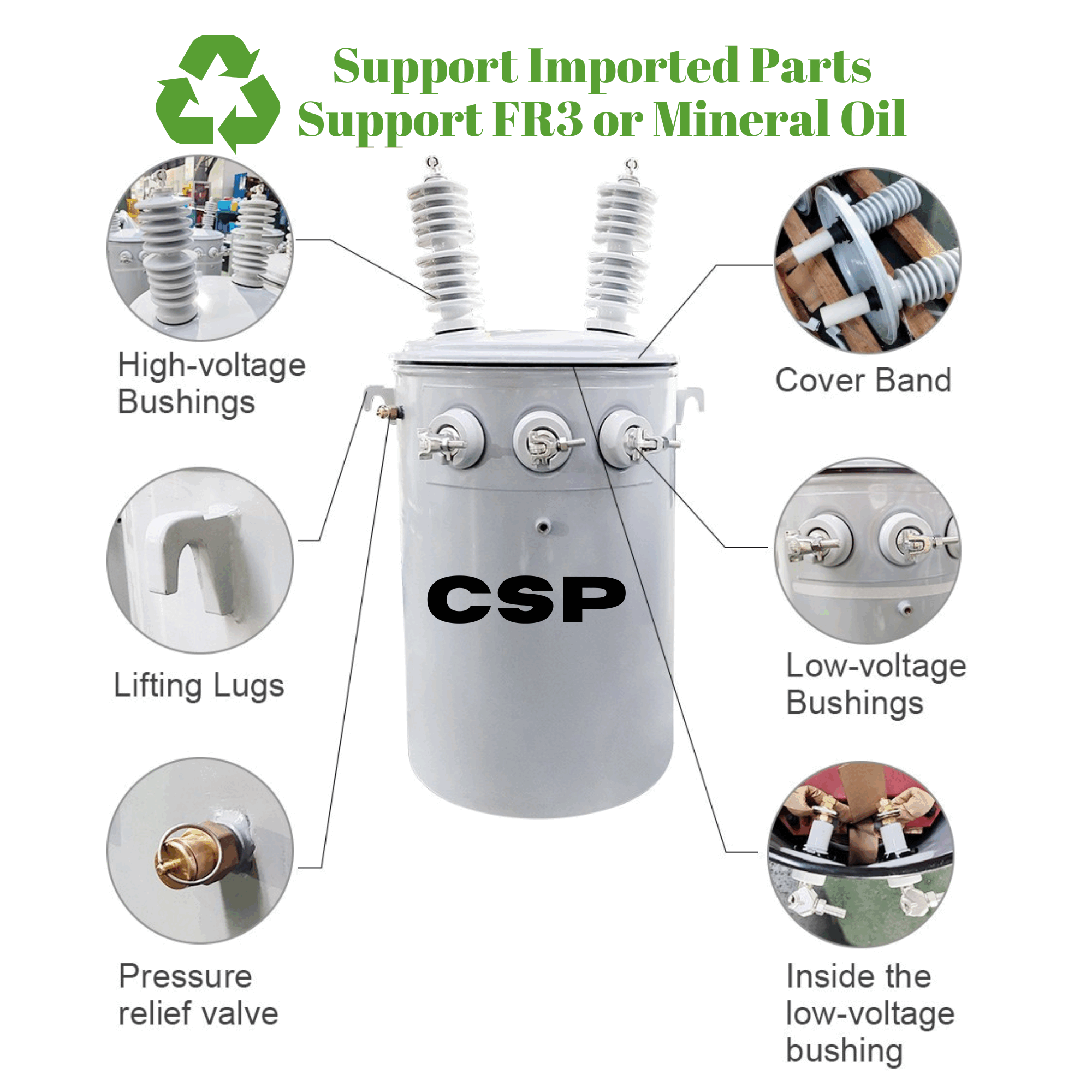

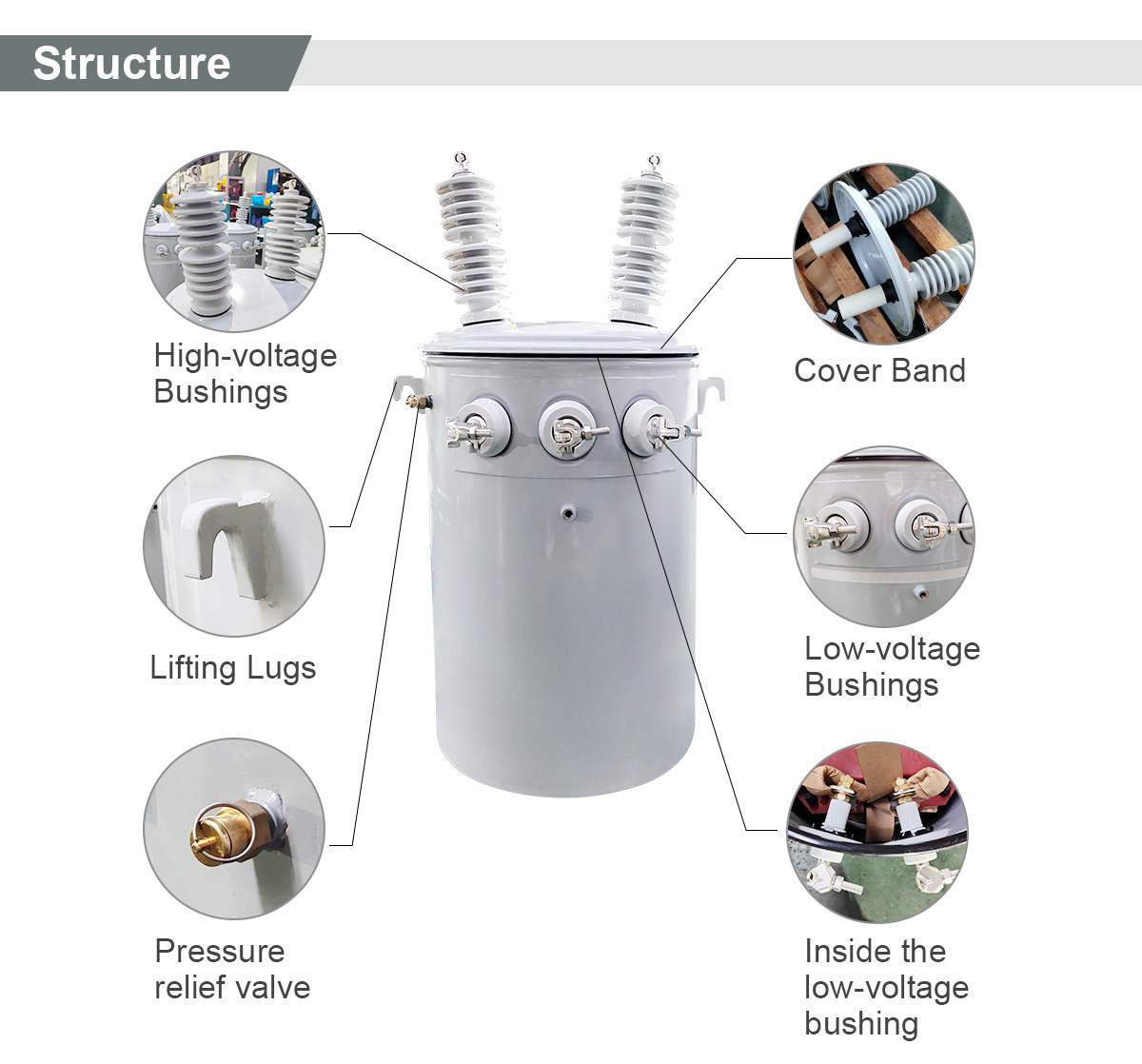

Employing the reliable Ii6 vector group and additive polarity, the transformer stands as a pinnacle of performance and reliability. The main accessories include 1 high voltage bushing, 3 low voltage bushings, 1 dual voltage switch, 1 pressure relief, 1 H2 terminal, 2 copper strips, 3 tank grounds, 2 support lugs, 2 lift lugs, and 6 cover clamps, attesting to its advanced design and practicality.

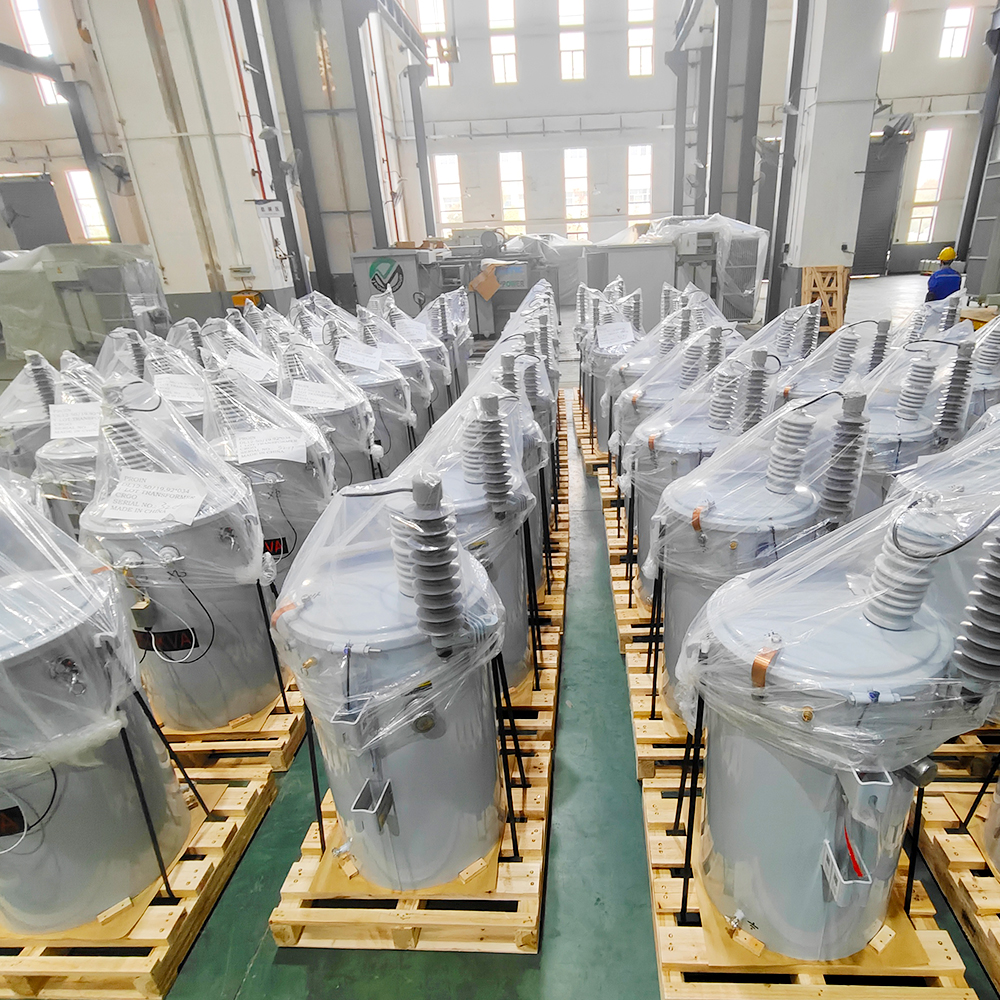

25kVA 17.32kV Single Phase Transformer
This transformer has a primary voltage of 17.32 kV and a secondary voltage of 230V, carefully engineered to meet the customer's specific requirements.
With copper winding at its core, this transformer guarantees superior performance and reliability. Operating at a frequency of 50 Hz and featuring a Vector group of Ii0 with additive polarity, it ensures seamless integration into diverse power systems.
The transformer with a regulation range of 17.32kV±2×2.5%, enabling precise and stable voltage output even under varying load conditions.
