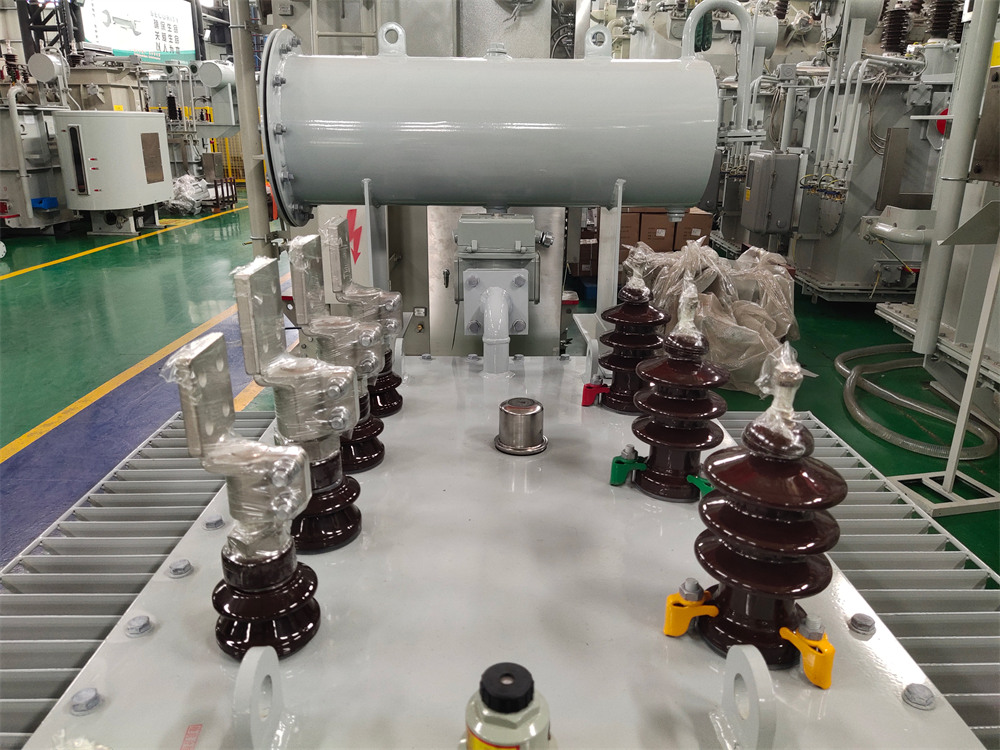

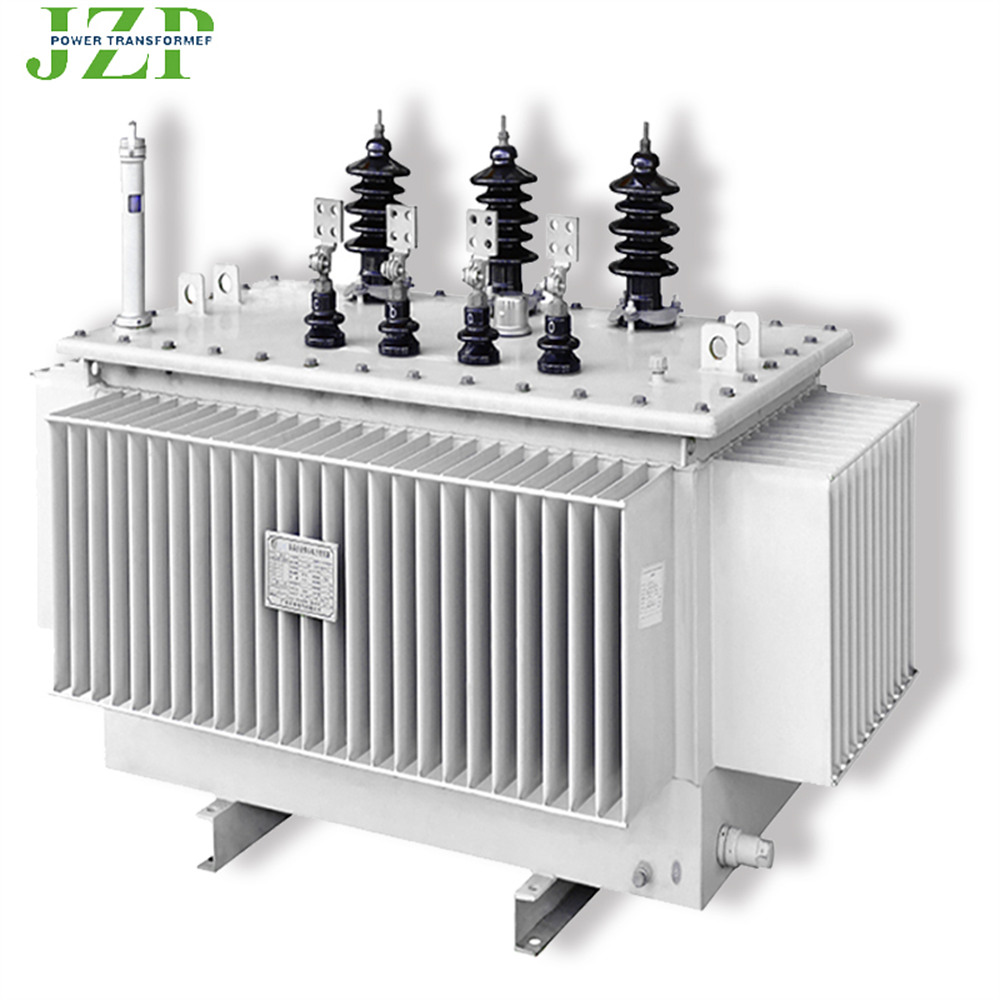

High-Efficiency 220kVA Oil Transformers for Heavy-Duty Applications
Structural Features
Core
High-permeability cold-rolled silicon steel strips with layer insulation to minimize eddy current losses.
Three-phase five-limb design to reduce zero-sequence impedance and suppress harmonics.
Windings

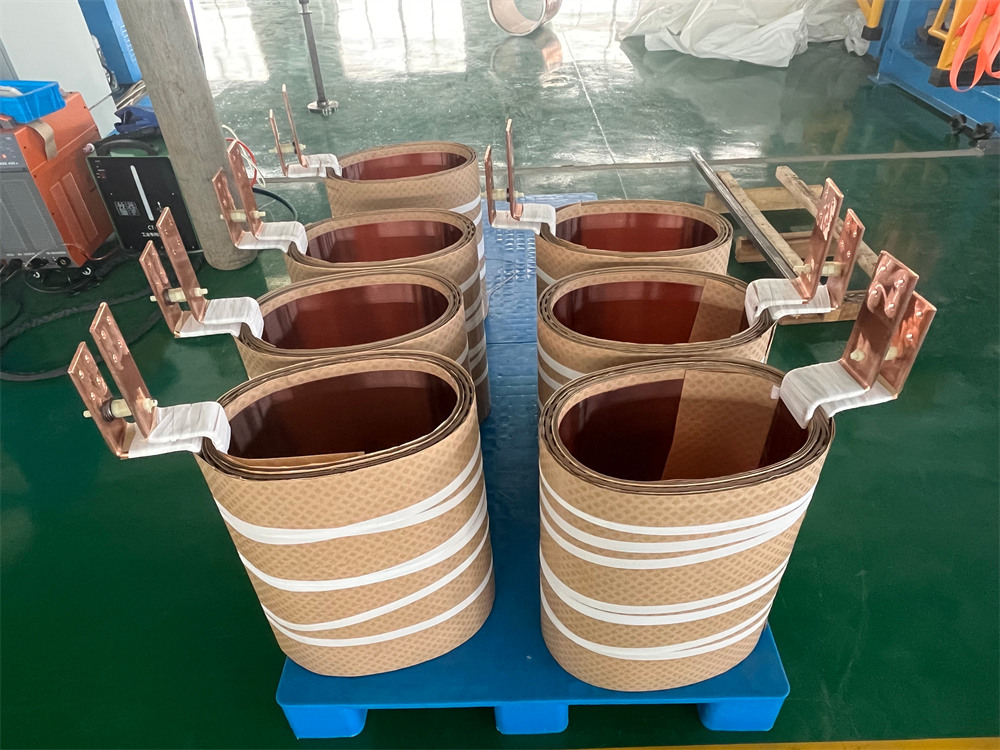

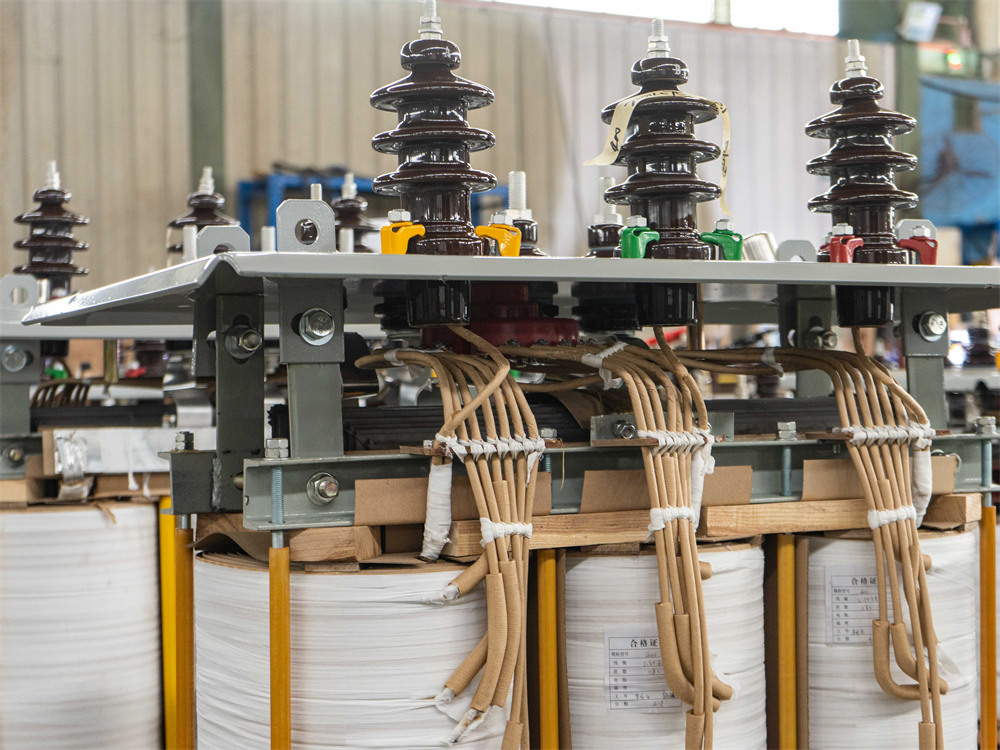

High Voltage Winding: Copper foil wound with Nomex paper interlayer insulation.
Low Voltage Winding: Multi-layer cylindrical structure for enhanced short-circuit resistance.

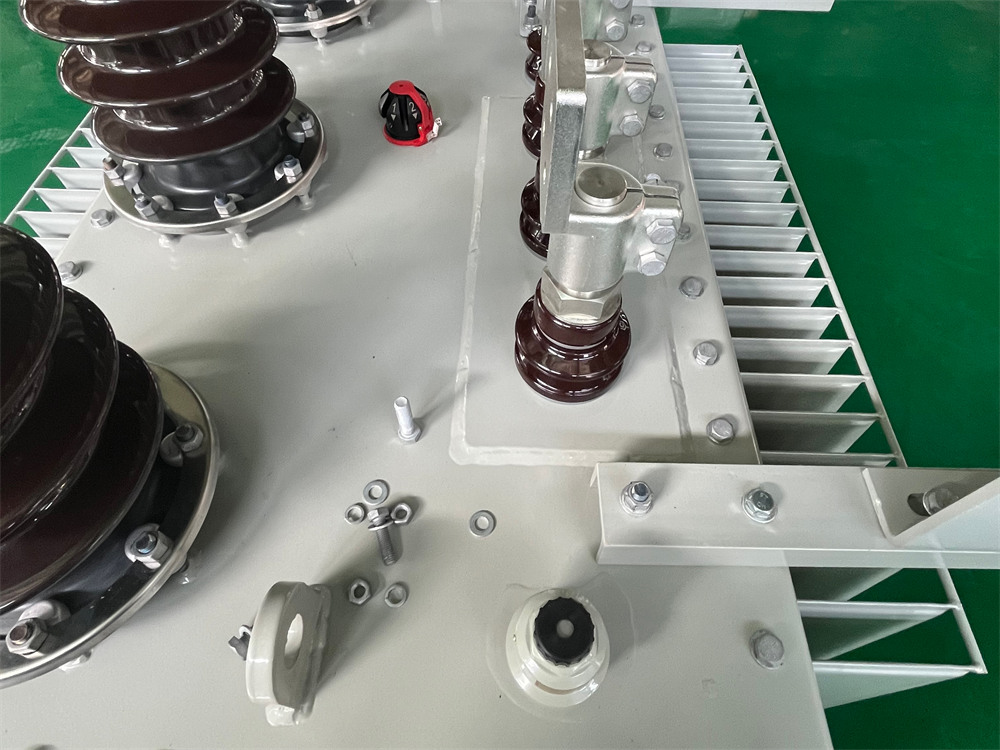

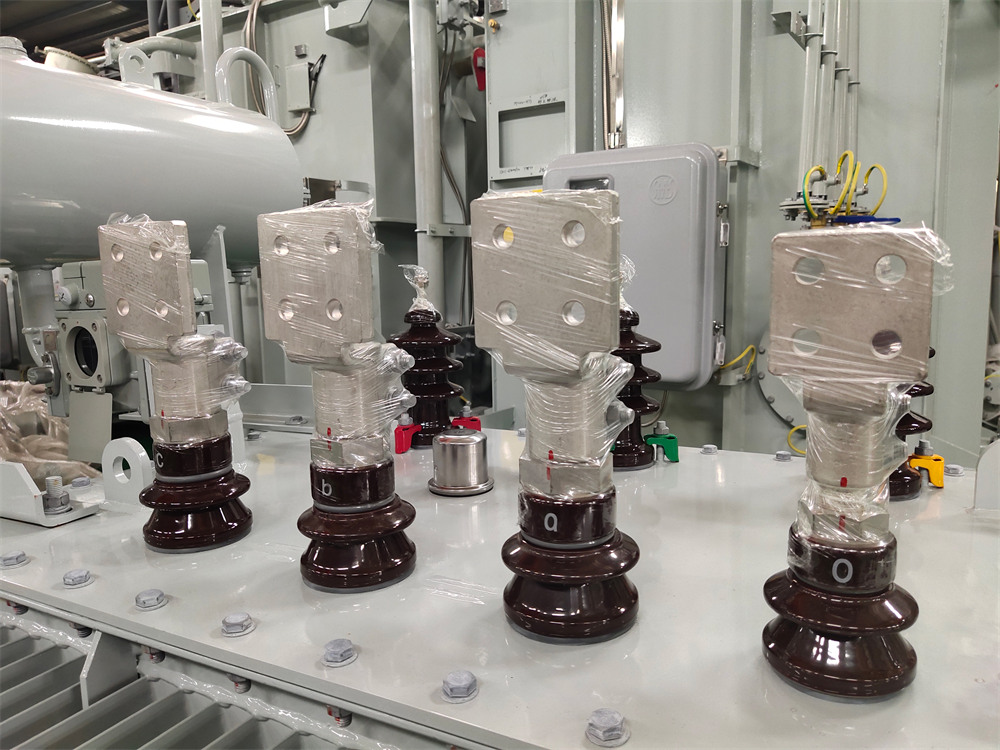

Tank and Cooling
ONAN design with natural oil circulation and no external fans, ideal for outdoor installation.

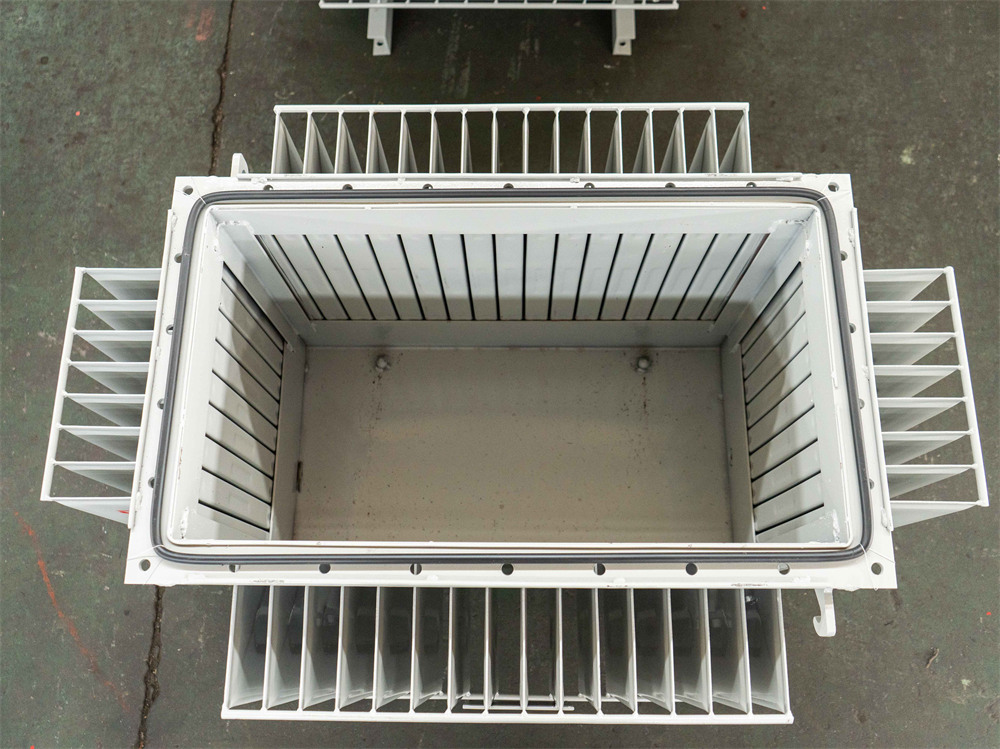

Corrugated radiator fins integrated into the tank for efficient heat dissipation.
Insulation System
Mineral oil (or eco-friendly ester oil) provides insulation, cooling, and arc extinction.
Partial discharge level ≤50pC (IEC 60076 compliant).
Applications
Industrial Power Distribution
Medium-voltage distribution (10kV to 0.4kV) in factories, mines, and metallurgical plants.
Supports short-term overload (e.g., electric furnaces, motor startups).
Commercial Buildings
Power distribution for malls, office towers, and hotels.
Infrastructure
Railway stations, airports, and wastewater treatment plants.
Remote Areas
Operates reliably in high humidity, dusty, or temperature-fluctuating environments.
Key Advantages
High Reliability
Fully sealed tank prevents oil oxidation and contamination.
Strong short-circuit withstand capability (GB/T 1094.5 compliant).
Low Maintenance

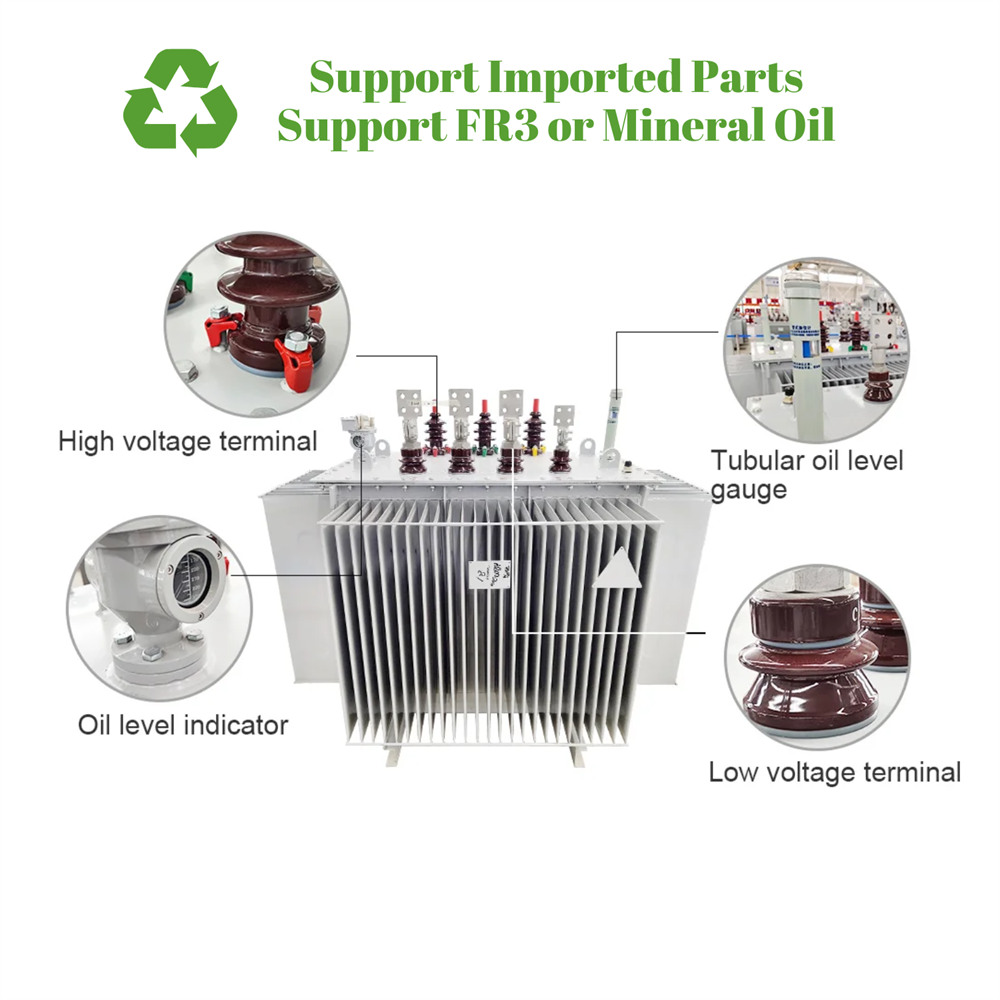

Maintenance-free design with real-time oil level and temperature monitoring.
Cost-Effective
Low initial investment and minimal operational energy losses.
Eco-Friendly Options
Available with biodegradable ester oil (e.g., FR3) for RoHS compliance.

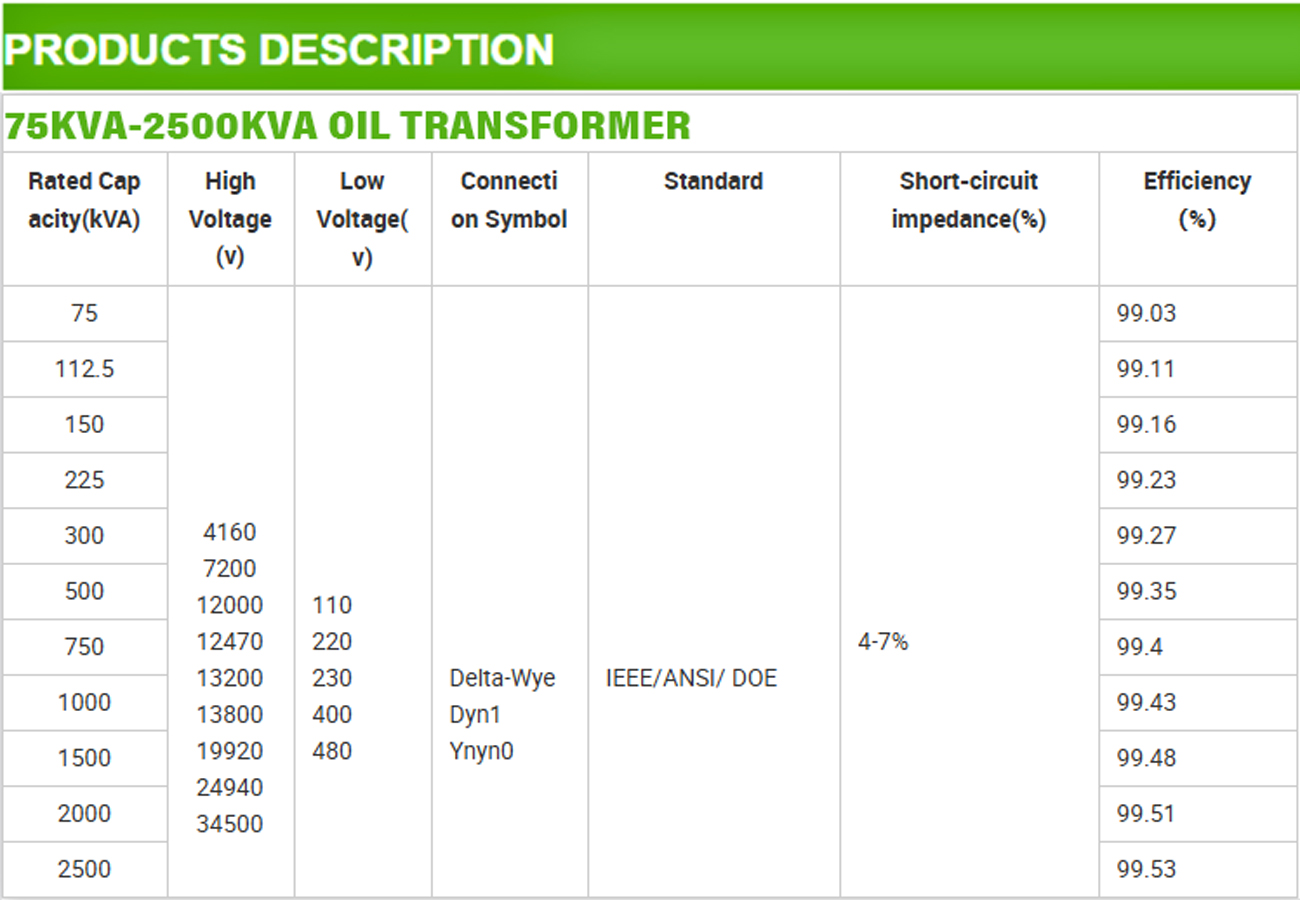

Selection Guidelines
Each unit undergoes rigorous testing, including:
Insulation resistance and impulse voltage tests.
Load loss and no-load loss measurements.
Short-circuit withstand verification.
Certified by ISO 9001, ISO 14001, and KEMA for global compliance.
Selection Guidelines
Load Characteristics
Confirm load type (steady vs. fluctuating).
Assess short-term overload requirements (e.g., electric arc furnaces).
Environmental Conditions
Altitude ≤1,000 meters (derating required above this).
Ambient temperature: -25℃ to +45℃ (enhanced cooling for tropical regions).
Compliance
Meets GB 1094 (China), IEC 60076 (international), and industry-specific certifications (e.g., ATEX for explosive atmospheres).

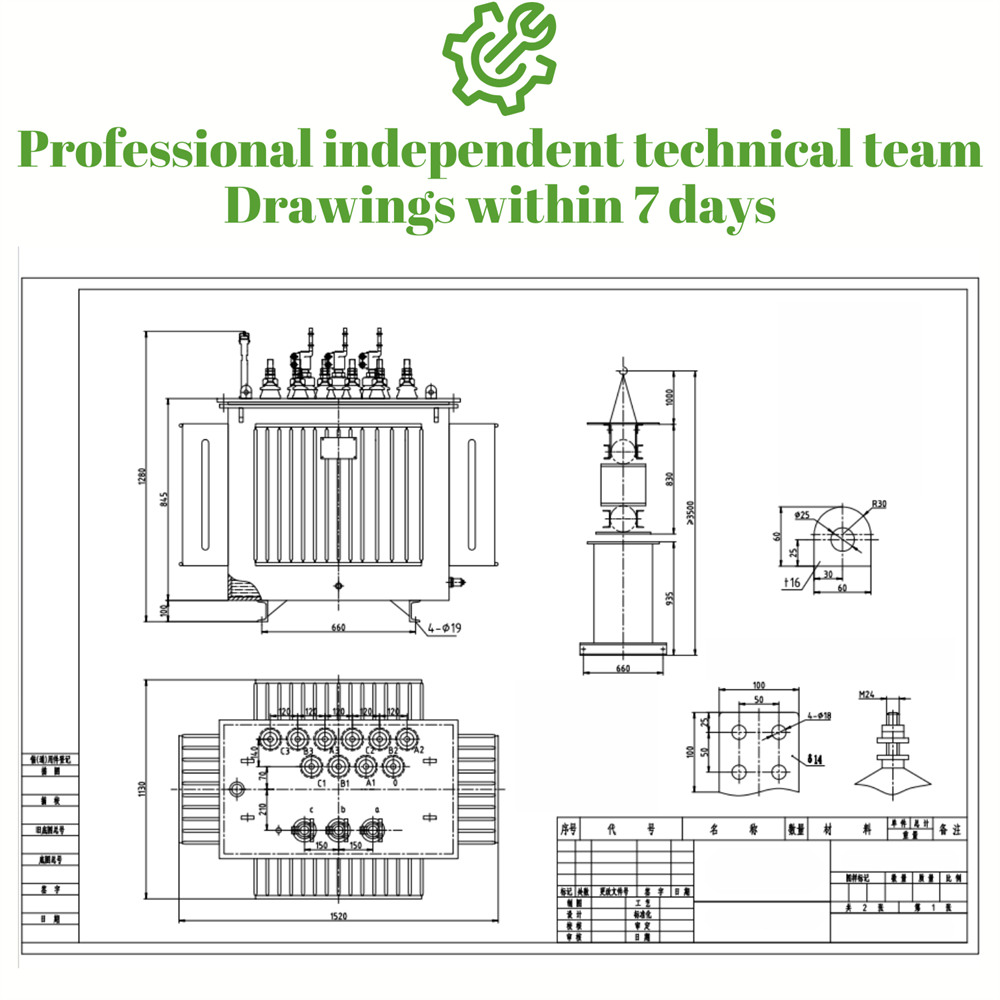

Installation and Maintenance
Installation Requirements
Level foundation with ≥1m clearance on all sides for heat dissipation.
Grounding resistance ≤4Ω; separate lightning protection design.
Routine Maintenance
Check oil level, color, and leaks every 6 months.
Test insulation resistance annually using a 2,500V megohmmeter.
Troubleshooting
Overheating: Inspect radiator blockage or abnormal loads.
Oil Chromatography Analysis: Detect early signs of internal discharge or insulation degradation.
